Description

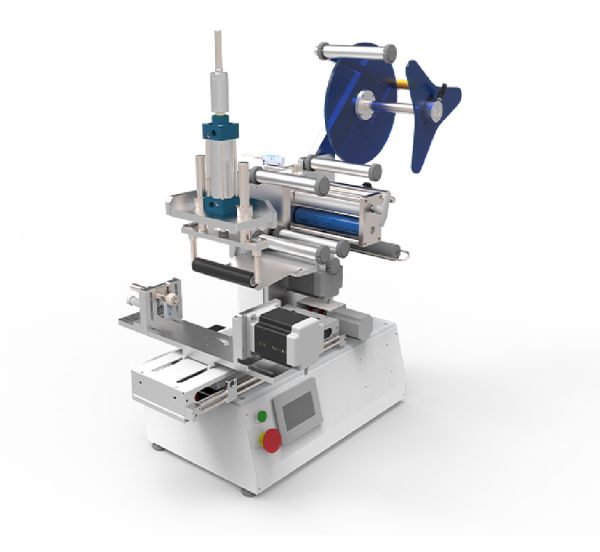

Semi-automatic Square And Round Multi-function Labeling Machine
Model: ZK-T104
Product parameter /SPECIFICATION
| Labeling accuracy | ±1mm (excluding product and label errors) |
| Labeling speed | 15~30pieces/min (depending on product and label size) |
| Applicable product size | Flat bottle: Length: 40mm ~140mm |
| Width: 40mm ~ 140mm (round bottle diameter 100mm) | |
| Height: 50mm ~ 200mm | |
| Applicable label size | Length: 10mm ~ 100mm |
| Width (including backing paper width) : 20mm ~ 175mm | |
| Overall size | Approx. 1000mm×600mm×900mm (length × width × height) |
| Applicable power supply | 220V/50HZ |
| Machine weight | About 100Kg |
Product introduction /DESCRIPTION
Basic function
◆The machine uses an arc swing angle method for labeling, effectively eliminating air bubbles; changing molds allows compatibility with different product labeling；
◆ It can label flat bottles on one side or both sides (with automatic flipping)。
Optional function
◆ Optional transparent label detection sensor is available, suitable for transparent labels；
◆Optional ribbon coder or thermal transfer coder can be equipped to print production dates and other functions on the labels, with coding and labeling synchronized to save processes.
